YN20S00002F1 YN20S00002F2 Stepper Throttle Motor For Kobelco SK210-8 SK200-6E

Product Categories

PNC EXCAVATOR PARTS CO., LIMITED

Contact Now

Brand Name : PNC

Model Number : Kobelco SK210

Place of Origin : Japan

MOQ : 1PC

Price : USD 369-399/PC

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500pcs/months

Delivery Time : 1-2 working days

Packaging Details : Carton box

Machine : Kobelco Excavator

Model : SK210-8 SK200-6E

Part No : YN20S00002F1 YN20S00002F2

Quality : Kobelco genuine

Weight : 3-5 kgs

Warranty : 6 months

Stock : 200pcs

Product name : SK210-8 Stepper Motor, SK200-6E Throttle Motor

Contact Now

YN20S00002F1 YN20S00002F2 Stepper Throttle Motor For Kobelco SK210-8 SK200-6E

Description	SK210-8 Stepper Motor, SK200-6E Throttle Motor
Application	Kobelco Excavator
Model	SK210-8 SK200-6E
Part No.	YN20S00002F1 YN20S00002F2
Quality	Kobelco genuine
Weight	3-5 kgs
Packing	Carton box
MOQ	1PC
Lead time	About 1-3 working days
Payment	TT, Western union, Paypal, Paysend, RMB
Warranty	6 Months
Shipping Port	Huangpu Old Port, Shenzhen Yantian,Guangzhou

Compatible equipment models: VOE22089218:

HEAVY EQUIPMENT 70SR-1E 70SR-1ES 80MSR-1E 80MSR-1ES ED150 ED150-1E ED190LC-6E SK115SRDZ SK115SRDZ-1E

SK135SR SK135SR-1E SK135SRL-1E SK135SRLC SK135SRLC-1E SK160LC-6E SK200-6ES SK200LC-6ES SK210LC-6E

SK235SR-1E SK235SR-1ES SK235SRLC-1E SK235SRLC-1ES SK235SRNLC-1E SK235SRNLC-1ES SK250LC-6E SK290LC-6E

SK80CS-1E
LIGHT EQUIPMENT SK115SRDZ-1E SK135SRLC-1E

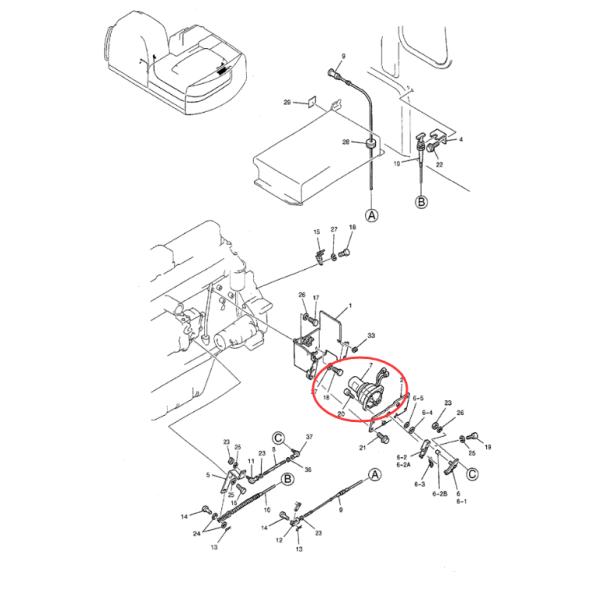

Parts on group (SK200-6E):

Pos.	Part No	Qty	Parts name	Comments
. .	YN11M00018F1	[1]	CONTROL ASSY, ENGINE
1.	YN11M01195P1	[1]	BRACKET	KOB
2.	YN11M01102P1	[1]	PLATE	KOB COVER
4.	YN11M01185P1	[1]	U-BRACKET	KOB
5.	YN11M01207P1	[1]	LEVER	KOB
6.	YN11M01186F1	[1]	LEVER	KOB ASSY
6-1.	YN11M01188P1	[1]	PLATE	KOB
6-2.	YN11M01190F1	[1]	LEVER	KOB ASSY
6-2A.	YN11M01189P1	[1]	LEVER	KOB
6-2B.	2405R312D1215	[1]	BUSHING	KOB Superseded by part number: 2405R61D2
6-3.	YN11M01210P1	[1]	SPRING	KOB
6-4.	ZW16X12000	[1]	WASHER	KOB ID 12 x OD 24 x Th 2.3mm
6-5.	ZR16X01200	[1]	RING	KOB Retaining, ID 11.1 x OD 12 x Th 1.0mm
7.	YN20S00002F1	[1]	MOTOR	KOB ASSY, GOVERNOR
. .	YN20S00002F1R	[1]	REMAN-ELECTRIC MOTOR	KOB SK200-6ES BTW YN10-38001 - YN10-41732, SK200LC-6ES BTW YQ10-05501 - YQ10-05981
. .	YN20S00002F1C	[1]	CORE-ELECTRIC MOTOR	KOB Return Number

YN20S00002F1 YN20S00002F2 Stepper Throttle Motor For Kobelco SK210-8 SK200-6E
